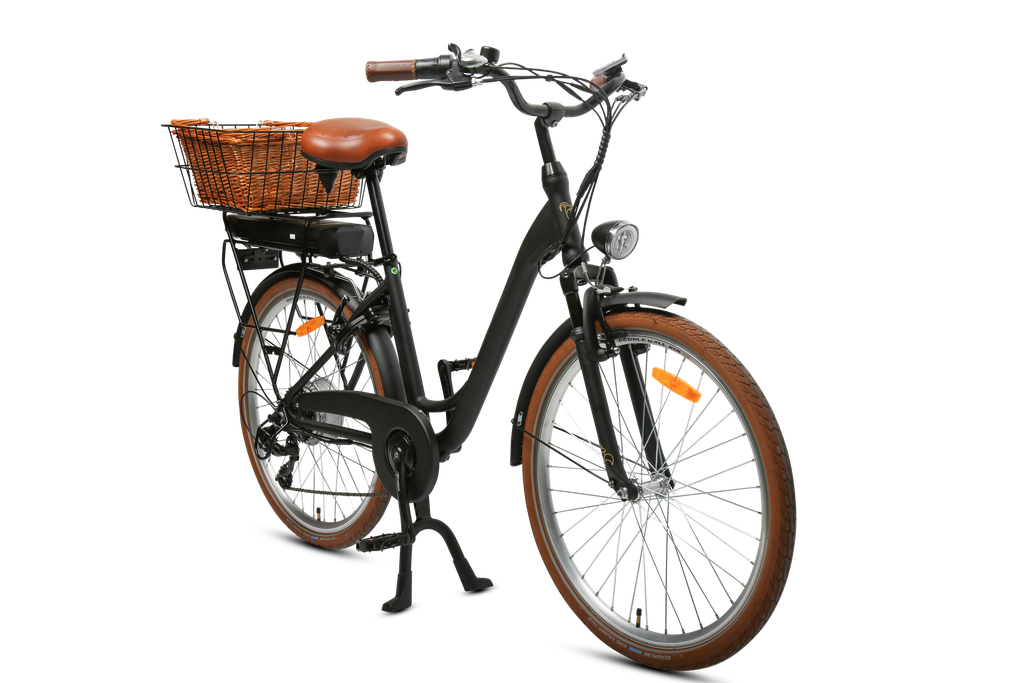

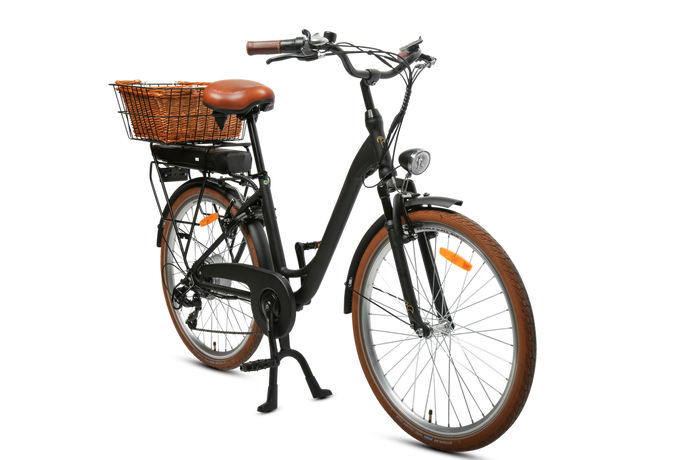

The 3rd generation of Dirodi's popular Classimo e-bike is upgraded with a 25% increase in motor torque, 15% enhanced gear ratio, integrated lights, Zoom front suspension, and improved throttle system.
| Battery | |
|---|---|
| Battery A/H | 10.4 |
| Battery Description | Lithium Battery |
| Battery Voltage (V) | 36 |
| Battery W/H | 374.4 |
| Charging Time (Hour) | 5.2 |
| Max Range (KM) | 60 |
| Average Range (KM) | 40 |
| Battery Weight (KG) | 3 |
| Charger Model | Sans 42V 2A DC2.1 Charger |
| Removable Battery | Yes |
| Throttle Range (KM) | 20 |
| General Specifications | |
| Colour | Matte Black or Matte Grey |
| Road Legal | Yes |
| Road Legality Note | Road legal given the throttle is not unlocked and the max speed isn't increased from the default 25km/h |
| Waterproof Rating | IP54 |
| Ergonomics | |
| Sitting Position | Upright |
| Grips Model | Velo Comfort Grips (Brown) |
| Handlebars Type | Riser |
| Saddle Model | Justrek Gel Saddle |
| Accessories | |
| Bell | Yes |
| Bottle Holder | No |
| Front Carrier | No |
| Front Light | Yes (Integrated) |
| Mudguards | Yes |
| Rear Basket | Yes |
| Rear Light | Yes (Integrated) |
| Rear Rack | Yes (Integrated) |
| USB Charger | Yes |
| Wheel Lock | Yes |
| Brakes | |
| Brake Brand / Model | Tektro V-Brakes |
| Brake Cut off Sensor | Yes |
| Brake Pads Model/Material | Tektro V Brake Pads, Compound |
| Brake Type | V Brakes |
| Rotor Size (MM) | N/A |
| Drivetrain | |
| Cassette Tooth | 14 - 34 |
| Chain Model | KMC Z50 |
| Chainring Model | Prowheel Double-Wall Chainring |
| Chainring Tooth Count | 48 |
| Derailleur Model | Shimano Tourney |
| Gear Shifter | Shimano Tourney |
| Number of gears | 7 |
| Suspension | |
| Suspension Type | Front |
| Suspension Compression Adjustment | Yes |
| Suspension | Yes |
| Suspension Model | Suntour Front Suspension Forks |
| Suspension Travel (CM) | 8 |
| Throttle | |
| Throttle | Yes |
| Throttle Type | Twist |
| Default Throttle Max Speed (KM/H) | 6 |
| Throttle Max Unlocked Speed - For offroad Use (KM/H) | 30 |
| Tyre | |
| Tyre Size (Inch) | 26 |
| Tyre Brand / Model | Schwalbe Road Cruiser Tyres |
| Tyre Width (Inch) | 2 |
| Puncture Resistant Tyres | No |
| Tyre Colour | Brown |
| Frame | |
| Frame Size (Inch) | 17 |
| Max Load (KG) | 110 |
| Frame Material | Aluminium Alloy 6061 |
| Frame | Step-Through |
| Rider Height Guide | |
| Min Rider's Height (Depreciated) | 150 (4'9") |
| Rider Max Height (CM) | 185 (6′ 1″) |
| Motor | |
| Motor Brand / Model | MXUS 250W Brushless Rear Hub Motor |
| Motor Power (W) | 250 |
| Max Unlocked Speed - For Offroad Use (KM/H) | 30 |
| Default Maximum Speed (KM/H) | 25 |
| Motor Type | Brushless Geared Rear Hub Motor |
| Torque (NM) | 55 |
| Bike Geometry | |
| Axle to axle length (CM) | 109 |
| Handlebars Width (CM) | 64 |
| Total length (CM) | 179 |
| Bike Weight (KG) | 26 |
| Adjustable Handlebars Angle | Yes |
| Adjustable Seat Height | Yes |
| Box Gross Weight (KG) | 36 |
| Maximum Handlebars Height (CM) | 108 |
| Maximum Seat Height (CM) | 99 |
| Minimum Handlebars Height (CM) | 100 |
| Minimum Seat Height (CM) | 79 |
| Standover Height (CM) | 28 |
| Packaging Specifications | |
| Packaging Dimensions (CM) | L x W x D | 140 x 25.5 x 91 |
| Wheels | |
| Front Wheel Mount Type | Nuts |
| Rear Wheel Mount Type | Nuts |
| Uncategorized | |
| Adjustable Handlebars Height | Yes |
